INSPECTION
PROCEDURE
1. INSPECT NO. 1 COOLER THERMISTOR
(a) Measure the resistance according to the value(s) in the table below.
|

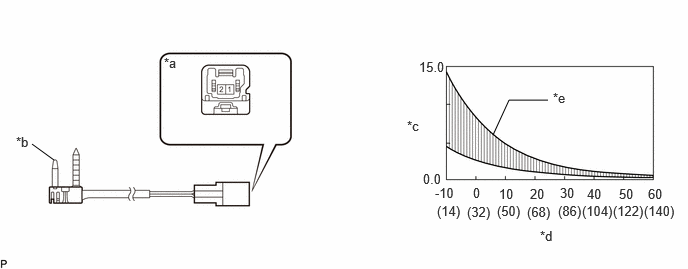

*a |
Component without harness connected (No. 1 Cooler Thermistor) |
*b |
Sensing Portion |
|
*c |
Resistance (kΩ) |
*d |
Temperature (°C (°F)) |
|
*e |
Allowable Range |
- |
- |
Standard Resistance
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 - 2 |
-10°C (14°F) |
4.79 to 14.54 kΩ |
|
0 °C (32 °F) |
2.89 to 8.31 kΩ |
|
|
10 °C (50 °F) |
1.78 to 4.91 kΩ |
|
|
20 °C (68 °F) |
1.15 to 3.03 kΩ |
|
|
30 °C (86 °F) |
0.76 to 1.95 kΩ |
|
|
40 °C (104 °F) |
0.51 to 1.28 kΩ |
|
|
50 °C (122 °F) |
0.35 to 0.86 kΩ |
|
|
60 °C (140 °F) |
0.25 to 0.59 kΩ |
If the resistance is not as specified, replace the No. 1 cooler thermistor.
NOTICE:
- Hold the sensor only by its connector. Touching the sensing portion may change the resistance value.
- When measuring, the sensor temperature must be the same as the ambient temperature.
HINT:
As the temperature increases, the resistance decreases (see the graph).
|
|
