| Last Modified: 08-22-2025 | 6.11:8.1.0 | Doc ID: RM100000001CVOV |
| Model Year Start: 2019 | Model: Corolla Hatchback | Prod Date Range: [06/2018 - ] |
| Title: HEATING / AIR CONDITIONING: CONDENSER (except G16E-GTS): DISASSEMBLY; 2019 - 2026 MY Corolla Corolla Hatchback Corolla HV [06/2018 - ] | ||
DISASSEMBLY
PROCEDURE
1. REMOVE COOLER DRYER
|

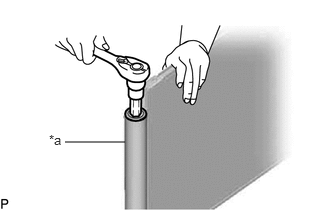

(a) Using a 14 mm straight hexagon, remove the cap from the modulator. |
|
|

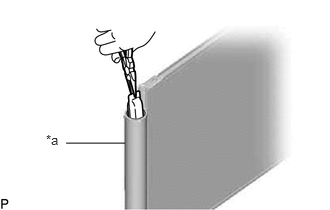

(b) Using pliers, remove the cooler dryer from the modulator. |
|
|
|
