Title: METER / GAUGE / DISPLAY: TRIP SWITCH: REMOVAL; 2026 MY GR Corolla Corolla Corolla Hatchback Corolla HV [03/2026 -        ]

REMOVAL

PROCEDURE

1. REMOVE NO. 1 INSTRUMENT SIDE PANEL

Click here 2025 - 2026 MY GR Corolla Corolla Corolla Hatchback Corolla HV [09/2024 -        ]; INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: REMOVAL+

2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here 2023 - 2026 MY Corolla Corolla Hatchback Corolla HV [11/2022 -        ]; INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (except G16E-GTS): REMOVAL+

3. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here 2025 - 2026 MY GR Corolla Corolla Corolla Hatchback Corolla HV [09/2024 -        ]; INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: REMOVAL+

4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click here 2025 - 2026 MY GR Corolla Corolla Corolla Hatchback Corolla HV [09/2024 -        ]; INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: REMOVAL+

5. REMOVE TRIP SWITCH

(a) for Type A:

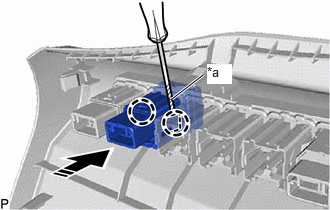

(1) Using a screwdriver, disengage the 2 claws as shown in the illustration to remove the trip switch.

*a

Protective Tape

Remove in this Direction

HINT:

Tape the screwdriver tip before use.

(b) for Type B:

(1) Using a screwdriver, disengage the 2 claws as shown in the illustration to remove the trip switch.

*a

Protective Tape

Remove in this Direction

HINT:

Tape the screwdriver tip before use.
