REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery state sensor assembly removal/installation are shown below.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
|
Effect/Inoperative Function when Necessary Procedure not Performed |
Necessary Procedure |
Link |
|---|---|---|
|
Front Camera System |
Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. |
|
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here
![2023 - 2026 MY GR Corolla Corolla Corolla Hatchback Corolla HV [09/2022 - ]; SETUP: WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL: BEFORE DISCONNECTING BATTERY](/t3Portal/stylegraphics/info.gif)
2. REMOVE BATTERY STATE SENSOR ASSEMBLY
|

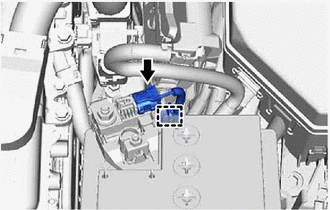

(a) Disconnect the clamp and battery state sensor assembly connector. |
|
|

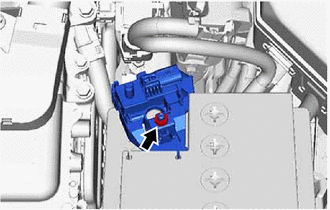

(b) Remove the nut and disconnect the engine wire from the battery state sensor assembly. |
|
|

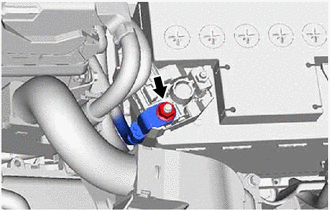

(c) Loosen the nut and remove the battery state sensor assembly from the auxiliary battery. |
|
|
(d) Disengage the 2 claws to remove the battery state sensor assembly from the battery current sensor holder. |
|
|
|
