| Title: METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM (for 12.3 Inch Display): B150819; Turn Signal/Hazard Flasher Circuit Current Above Threshold; 2026 MY Corolla Corolla Hatchback Corolla HV GR Corolla [08/2025 - ] | ||
|
DTC |
B150819 |
Turn Signal/Hazard Flasher Circuit Current Above Threshold |
DESCRIPTION
This DTC is stored when the combination meter assembly detects a short in a turn signal light circuit.
HINT:
If there is a short in a turn signal light circuit, all of the turn signal lights in that circuit will not blink.
|
DTC No. |
Detection Item |
DTC Detection Condition |
Trouble Area |
|---|---|---|---|
|
B150819 |
Turn Signal/Hazard Flasher Circuit Current Above Threshold |
Diagnosis Condition:
Malfunction Status:
|
|
WIRING DIAGRAM

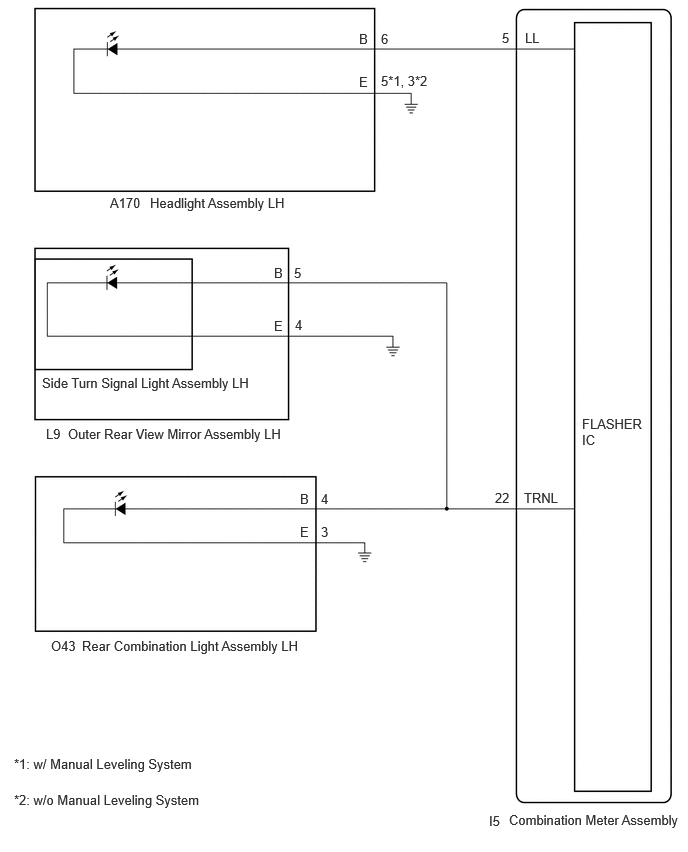

LH SIDE
except G16E-GTS
for G16E-GTS

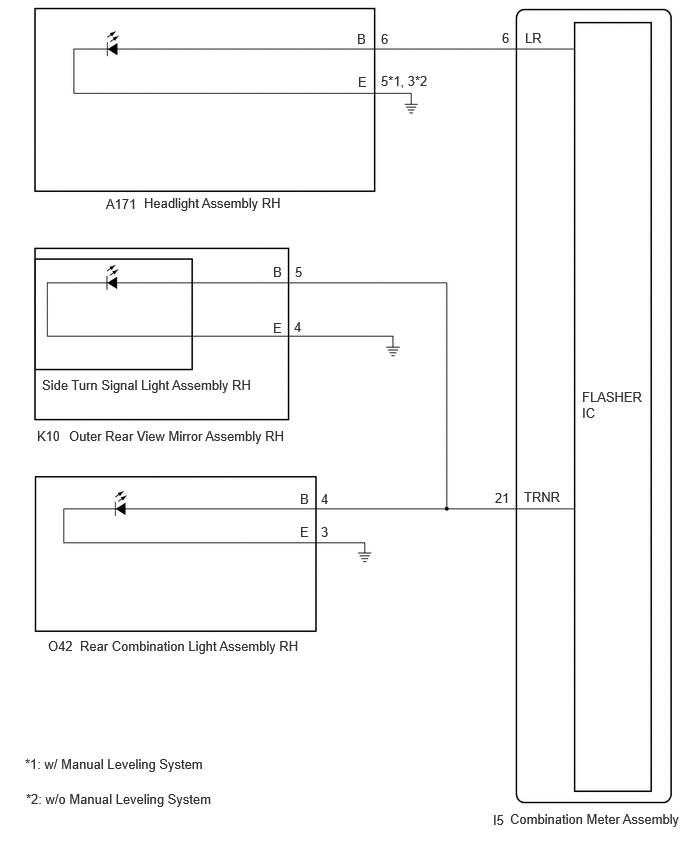

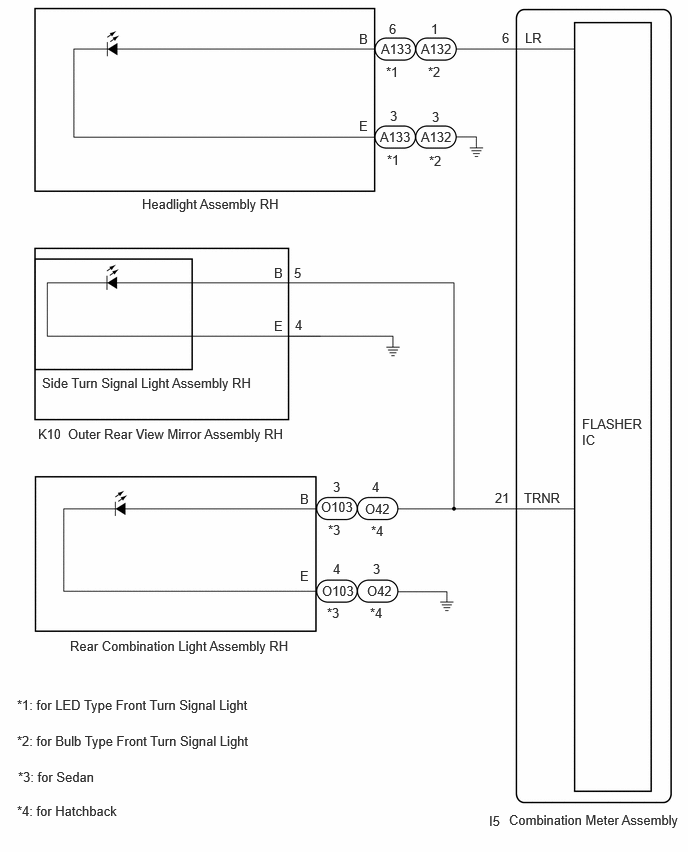

RH SIDE
except G16E-GTS
for G16E-GTS
CAUTION / NOTICE / HINT
NOTICE:
- When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.
-
When replacing the combination meter assembly, update the ECU security key.
Click here
![2023 - 2026 MY Corolla Corolla Hatchback Corolla HV GR Corolla [09/2022 - ]; SETUP: WHEN REPLACING OR REMOVING/INSTALLING PARTS: UPDATE ECU SECURITY KEY](/t3Portal/stylegraphics/info.gif)
PROCEDURE
|
1. |
CONFIRM MODEL |
(a) Choose the model to be inspected.
|
Result |
Proceed to |
|---|---|
|
except G16E-GTS |
A |
|
for G16E-GTS |
B |
| B |
|
|
|
2. |
CHECK LIGHTS |
(a) Inspect the illumination of each turn signal light.
|
Result |
Proceed to |
|---|---|
|
All LH turn signal lights do not blink |
A |
|
All RH turn signal lights do not blink |
B |
| B |
|
|
|
3. |
CHECK LH SIDE LIGHTS (HEADLIGHT ASSEMBLY LH) |
(a) Disconnect the A131*1, A134*2 headlight assembly LH connector.
(b) Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the headlight turn signal light blink.
HINT:
If the LH side turn signal lights blink, the headlight assembly LH is malfunctioning.
- *1: for LED Type Front Turn Signal Light
- *2: for Bulb Type Front Turn Signal Light
|
Result |
Proceed to |
|---|---|
|
LH side turn signal lights blink |
A |
|
LH side turn signal lights do not blink |
B |
| A |
|
|
|
4. |
CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the I5 combination meter assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance (for LED Type Front Turn Signal Light):
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A131-6 (B) or I5-5 (LL) - Body ground |
Always |
10 kΩ or higher |
Standard Resistance (for Bulb Type Front Turn Signal Light):
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A134-1 (B) or I5-5 (LL) - Body ground |
Always |
10 kΩ or higher |
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
5. |
CHECK LH SIDE LIGHTS (REAR COMBINATION LIGHT ASSEMBLY LH) |
(a) Connect the I5 combination meter assembly connector.
(b) Connect the A131*1, A134*2 headlight assembly LH connector.
(c) Disconnect the O104*3, O43*4 rear combination light assembly LH connector.
(d) Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the rear turn signal light blink.
HINT:
If the LH side turn signal lights blink, the rear combination light assembly LH is malfunctioning.
- *1: for LED Type Front Turn Signal Light
- *2: for Bulb Type Front Turn Signal Light
- *3: for Sedan
- *4: for Hatchback
|
Result |
Proceed to |
|---|---|
|
LH side turn signal lights blink |
A |
|
LH side turn signal lights do not blink |
B |
| A |
|
REPLACE REAR COMBINATION LIGHT ASSEMBLY LH for Hatchback: Click here
for Sedan: Click here
|
|
|
6. |
CHECK LH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH) |
(a) Connect the O104*1, O43*2 rear combination light assembly LH connector.
(b) Disconnect the L9 outer rear view mirror assembly LH connector.
(c) Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the side turn signal light blink.
HINT:
If the LH side turn signal lights blink, the outer rear view mirror assembly LH is malfunctioning.
- *1: for Sedan
- *2: for Hatchback
|
Result |
Proceed to |
|---|---|
|
LH side turn signal lights blink |
A |
|
LH side turn signal lights do not blink |
B |
| B |
|
|
|
7. |
INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
Click here
| OK |
|
| NG |
|
|
8. |
CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH AND OUTER REAR VIEW MIRROR ASSEMBLY LH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the I5 combination meter assembly connector.
(b) Disconnect the O104*1, O43*2 rear combination light assembly LH connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
O104-3 (B)*1, O43-4 (B)*2, L9-5 (B) or I5-22 (TRNL) - Body ground |
Always |
10 kΩ or higher |
- *1: for Sedan
- *2: for Hatchback
| OK |
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
9. |
CHECK RH SIDE LIGHTS (HEADLIGHT ASSEMBLY RH) |
(a) Disconnect the A133*1, A132*2 headlight assembly RH connector.
(b) Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the headlight turn signal light blink.
HINT:
If the RH side turn signal lights blink, the headlight assembly RH is malfunctioning.
- *1: for LED Type Front Turn Signal Light
- *2: for Bulb Type Front Turn Signal Light
|
Result |
Proceed to |
|---|---|
|
RH side turn signal lights blink |
A |
|
RH side turn signal lights do not blink |
B |
| A |
|
|
|
10. |
CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the I5 combination meter assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance (for LED Type Front Turn Signal Light):
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A133-6 (B) or I5-6 (LR) - Body ground |
Always |
10 kΩ or higher |
Standard Resistance (for Bulb Type Front Turn Signal Light):
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A132-1 (B) or I5-6 (LR) - Body ground |
Always |
10 kΩ or higher |
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
11. |
CHECK RH SIDE LIGHTS (REAR COMBINATION LIGHT ASSEMBLY RH) |
(a) Connect the I5 combination meter assembly connector.
(b) Connect the A133*1, A132*2 headlight assembly RH connector.
(c) Disconnect the O103*3, O42*4 rear combination light assembly RH connector.
(d) Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the rear turn signal light blink.
HINT:
If the RH side turn signal lights blink, the rear combination light assembly RH is malfunctioning.
- *1: for LED Type Front Turn Signal Light
- *2: for Bulb Type Front Turn Signal Light
- *3: for Sedan
- *4: for Hatchback
|
Result |
Proceed to |
|---|---|
|
RH side turn signal lights blink |
A |
|
RH side turn signal lights do not blink |
B |
| A |
|
REPLACE REAR COMBINATION LIGHT ASSEMBLY RH for Hatchback: Click here
for Sedan: Click here
|
|
|
12. |
CHECK RH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH) |
(a) Connect the O103*1, O42*2 rear combination light assembly RH connector.
(b) Disconnect the K10 outer rear view mirror assembly RH connector.
(c) Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the side turn signal light blink.
HINT:
If the RH side turn signal lights blink, the outer rear view mirror assembly RH is malfunctioning.
- *1: for Sedan
- *2: for Hatchback
|
Result |
Proceed to |
|---|---|
|
RH side turn signal lights blink |
A |
|
RH side turn signal lights do not blink |
B |
| B |
|
|
|
13. |
INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
Click here
| OK |
|
| NG |
|
|
14. |
CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH AND OUTER REAR VIEW MIRROR ASSEMBLY RH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the O103*1, O42*2 rear combination light assembly RH connector.
(b) Disconnect the I5 combination meter assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
O103-3 (B)*1, O42-4 (B)*2, K10-5 (B) or I5-21 (TRNR) - Body ground |
Always |
10 kΩ or higher |
- *1: for Sedan
- *2: for Hatchback
| OK |
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
15. |
CHECK LIGHTS |
(a) Inspect the illumination of each turn signal light.
|
Result |
Proceed to |
|---|---|
|
All LH turn signal lights do not blink |
A |
|
All RH turn signal lights do not blink |
B |
| B |
|
|
|
16. |
CHECK LH SIDE LIGHTS (HEADLIGHT ASSEMBLY LH) |
(a) Disconnect the A170 headlight assembly LH connector.
(b) Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the headlight turn signal light blink.
HINT:
If the LH side turn signal lights blink, the headlight assembly LH is malfunctioning.
|
Result |
Proceed to |
|---|---|
|
LH side turn signal lights blink |
A |
|
LH side turn signal lights do not blink |
B |
| A |
|
|
|
17. |
CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the I5 combination meter assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A170-6 (B) or I5-5 (LL) - Body ground |
Always |
10 kΩ or higher |
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
18. |
CHECK LH SIDE LIGHTS (REAR COMBINATION LIGHT ASSEMBLY LH) |
(a) Connect the A170 headlight assembly LH connector.
(b) Connect the I5 combination meter assembly connector.
(c) Disconnect the O43 rear combination light assembly LH connector.
(d) Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the rear turn signal light blink.
HINT:
If the LH side turn signal lights blink, the rear light assembly LH is malfunctioning.
|
Result |
Proceed to |
|---|---|
|
LH side turn signal lights blink |
A |
|
LH side turn signal lights do not blink |
B |
| A |
|
|
|
19. |
CHECK LH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH) |
(a) Connect the O43 rear combination light assembly LH connector.
(b) Disconnect the L9 outer rear view mirror assembly LH connector.
(c) Operate the headlight dimmer switch assembly and check that the LH side turn signal lights other than the side turn signal light blink.
HINT:
If the LH side turn signal lights blink, the outer rear view mirror assembly LH is malfunctioning.
|
Result |
Proceed to |
|---|---|
|
LH side turn signal lights blink |
A |
|
LH side turn signal lights do not blink |
B |
| B |
|
|
|
20. |
INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
Click here
| OK |
|
| NG |
|
|
21. |
CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH AND OUTER REAR VIEW MIRROR ASSEMBLY LH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the O43 rear combination light assembly LH connector.
(b) Disconnect the I5 combination meter assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
O43-4 (B), L9-5 (B) or I5-22 (TRNL) - Body ground |
Always |
10 kΩ or higher |
| OK |
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
22. |
CHECK RH SIDE LIGHTS (HEADLIGHT ASSEMBLY RH) |
(a) Disconnect the A171 headlight assembly RH connector.
(b) Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the headlight turn signal light blink.
HINT:
If the RH side turn signal lights blink, the headlight assembly RH is malfunctioning.
|
Result |
Proceed to |
|---|---|
|
RH side turn signal lights blink |
A |
|
RH side turn signal lights do not blink |
B |
| A |
|
|
|
23. |
CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the I5 combination meter assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A171-6 (B) or I5-6 (LR) - Body ground |
Always |
10 kΩ or higher |
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
24. |
CHECK RH SIDE LIGHTS (REAR COMBINATION LIGHT ASSEMBLY RH) |
(a) Connect the A171 headlight assembly RH connector.
(b) Connect the I5 combination meter assembly connector.
(c) Disconnect the O42 rear combination light assembly RH connector.
(d) Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the rear turn signal light blink.
HINT:
If the RH side turn signal lights blink, the rear light assembly RH is malfunctioning.
|
Result |
Proceed to |
|---|---|
|
RH side turn signal lights blink |
A |
|
RH side turn signal lights do not blink |
B |
| A |
|
|
|
25. |
CHECK RH SIDE LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH) |
(a) Connect the O42 rear combination light assembly RH connector.
(b) Connect the I5 combination meter assembly connector.
(c) Disconnect the K10 outer rear view mirror assembly RH connector.
(d) Operate the headlight dimmer switch assembly and check that the RH side turn signal lights other than the side turn signal light blink.
HINT:
If the RH side turn signal lights blink, the outer rear view mirror assembly RH is malfunctioning.
|
Result |
Proceed to |
|---|---|
|
RH side turn signal lights blink |
A |
|
RH side turn signal lights do not blink |
B |
| B |
|
|
|
26. |
INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
Click here
| OK |
|
| NG |
|
|
27. |
CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH AND OUTER REAR VIEW MIRROR ASSEMBLY RH - COMBINATION METER ASSEMBLY) |
(a) Disconnect the O42 rear combination light assembly RH connector.
(b) Disconnect the I5 combination meter assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
O42-4 (B), K10-5 (B) or G158-21 (TRNR) - Body ground |
Always |
10 kΩ or higher |
| OK |
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
