POWER OUTLETS (INT): WIRELESS CHARGING SYSTEM (for Type A): TERMINALS OF ECU; 2026 MY Corolla Corolla Hatchback Corolla HV GR Corolla [08/2025

TERMINALS OF ECU

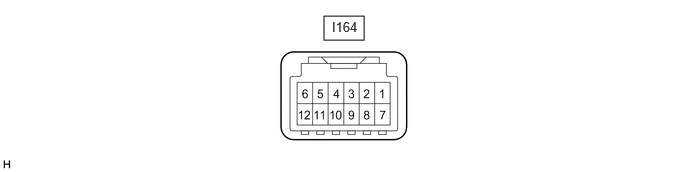

CHECK MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I164-1 (PGND) - Body ground

Ground

Always

Below 1 V

I164-5 (ACC) - I164-1 (PGND)

Power source (ACC)

Ignition switch ACC

11 to 14 V

Ignition switch off

Below 1 V

I164-6 (B+) - I164-1 (PGND)

Power source (+B)

Always

11 to 14 V

I164-7 (DIS) - Body ground

Charging suspension signal

For 5 seconds after turning ignition switch from off to ACC*1

4.5 to 6.0 V

Device being charged

Below 1 V

Charging suspended due to smart key system status*2

4.5 to 6.0 V

I164-9 (ILL-) - Body ground

Illumination (rheostat) signal

Taillight off

Below 1 V

Taillight on

Pulse generation

I164-10 (TAIL) - Body ground

Illumination signal

Taillight off

Below 1 V

Ignition switch off, taillight on

11 to 14 V

*1: When the ignition switch is turned from off to ACC, the mobile wireless charger cradle assembly monitors the charging suspension signal for 5 seconds. If the charging suspension signal is not 4 V or more for 0.8 seconds or more during monitoring, the mobile wireless charger cradle assembly determines that there is an open in the charging suspension signal line, blinks (pattern 1) the indicator light (amber), and prohibits operation until the ignition switch is turned from off to ACC again.
*2: For details about conditions when the certification ECU (smart key ECU assembly) sends the charging suspension signal, refer to System Description.
