Last Modified: 08-22-2025 6.11:8.1.0 Doc ID: RM0000003TPDC2O
Model Year Start: 2026 Model: GR Corolla Prod Date Range: [08/2025 -           ]
Title: SEAT BELT: OCCUPANT DETECTION SENSOR: INSPECTION; 2026 MY Corolla Corolla Hatchback Corolla HV GR Corolla [08/2025 -        ]

INSPECTION

PROCEDURE

1. INSPECT OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 3

Front passenger side seat occupied

Below 100 Ω

1 - 3

Front passenger side seat not occupied

1 MΩ or higher

If the result is not as specified, replace the occupant detection sensor (separate type front seat cushion pad).

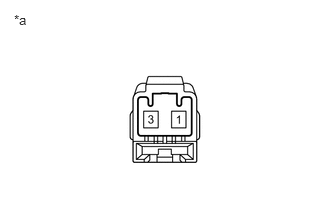

*a

Component without harness connected

(Occupant Detection Sensor (Separate Type Front Seat Cushion Pad))
