| Last Modified: 08-22-2025 | 6.11:8.1.0 | Doc ID: RM0000003TPCQ5X |
| Model Year Start: 2026 | Model: GR Corolla | Prod Date Range: [08/2025 - ] |
| Title: AUDIO / VIDEO: ASC ECU: REMOVAL; 2026 MY Corolla Corolla Hatchback Corolla HV GR Corolla [08/2025 - ] | ||
REMOVAL
PROCEDURE
1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
![2023 - 2026 MY Corolla Corolla Hatchback Corolla HV [11/2022 - ]; INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (except G16E-GTS): REMOVAL+](/t3Portal/stylegraphics/info.gif)
2. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Click here
3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Click here
4. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
Click here
5. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
Click here
6. REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Click here
7. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Click here
8. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Click here
9. REMOVE NO. 2 INSTRUMENT SIDE PANEL
Click here
10. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Click here
11. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Click here
12. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Click here
13. REMOVE NO. 2 STEREO COMPONENT EQUALIZER ASSEMBLY
|

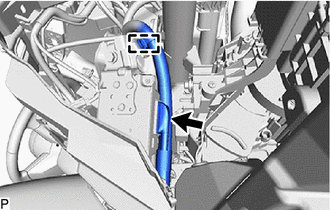

(a) Disconnect the connector. |
|
(b) Disengage the clamp.
|

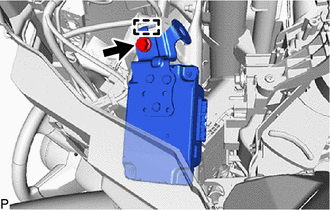

(c) Remove the bolt and disengage the guide to remove the No. 2 stereo component equalizer assembly. |
|
|
|
