Last Modified: 08-22-2025 6.11:8.1.0 Doc ID: RM0000003TPCQ5T
Model Year Start: 2026 Model: GR Corolla Prod Date Range: [08/2025 -           ]
Title: AUDIO / VIDEO: LUGGAGE SPEAKER: INSPECTION; 2026 MY Corolla Corolla Hatchback Corolla HV GR Corolla [08/2025 -        ]

INSPECTION

PROCEDURE

1. INSPECT NO. 1 SPEAKER WITH BOX

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.

(c) Measure the resistance of the speaker.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (WF2-) - 2 (WF2+)

Always

4.2 to 6.4 Ω

3 (WF1-) - 4 (WF1+)

Always

4.2 to 6.4 Ω

If the result is not as specified, replace the speaker.

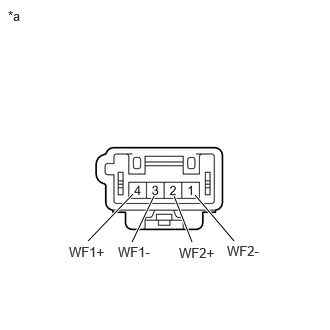

*a

Component without harness connected

(No. 1 Speaker With Box)
