TERMINALS OF ECU

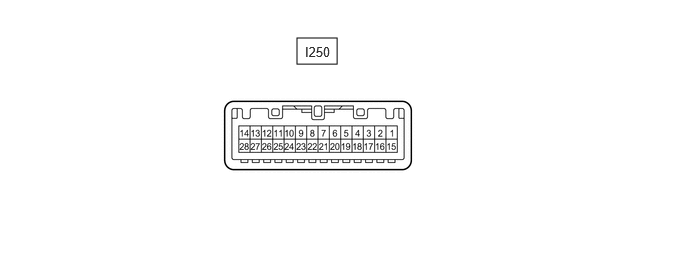

NO. 2 STEREO COMPONENT EQUALIZER ASSEMBLY
|
Terminal No. (Symbol) |
Terminal Description |
Condition |
Specified Condition |
|---|---|---|---|
|
I250-1 (CANL) |
CAN communication signal |
- |
- |
|
I250-6 (ACNT) |
ASC system control signal |
ASC system operating |
Below 1 V |
|
ASC system not operating |
3.3 V or higher |
||
|
I250-7 (ACK1) |
Serial communication (UART) signal |
- |
- |
|
I250-8 (CH1+) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-9 (CH2+) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-10 (CH3+) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-12 (CH4+) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-14 (+B) - I250-28 (GND) |
Power source |
Ignition switch off |
11 to 14 V |
|
I250-15 (CANH) |
CAN communication signal |
- |
- |
|
I250-21 (ACK2) |
Serial communication (UART) signal |
- |
- |
|
I250-22 (CH1-) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-23 (CH2-) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-24 (CH3-) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-26 (CH4-) - I250-28 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
I250-27 (IGP) - I250-28 (GND) |
Power source (IG) |
Ignition switch ON |
11 to 14 V |
|
I250-28 (GND) - Body ground |
Ground |
Always |
Below 1 Ω |

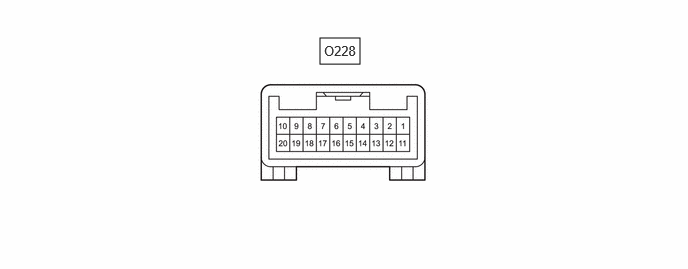

STEREO COMPONENT EQUALIZER ASSEMBLY
|
Terminal No. (Symbol) |
Terminal Description |
Condition |
Specified Condition |
|---|---|---|---|
|
O228-1 (ACK3) |
Serial communication (UART) signal |
- |
- |
|
O228-2 (AS1+) - O228-20 (GND) |
ASC system control signal |
ASC system operating |
Pulse generation |
|
O228-3 (AS2+) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
O228-4 (AS3+) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
O228-5 (ASG3) |
Shield ground |
- |
- |
|
O228-6 (AS4+) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
O228-8 (SCNT) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Below 1 V |
|
ASC system not operating |
3.3 V or higher |
||
|
O228-11 (ACK4) |
Serial communication (UART) signal |
- |
- |
|
O228-12 (AS1-) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
O228-13 (AS2-) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
O228-14 (AS3-) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
O228-15 (ASG4) |
Shield ground |
- |
- |
|
O228-16 (AS4-) - O228-20 (GND) |
ASC system sound signal |
ASC system operating |
Pulse generation |
|
|
