Reverse Signal Circuit |
DESCRIPTION
The radio and display receiver assembly receives a reverse signal from the BKUP LP relay*1 or park/neutral position switch assembly*2.
*1: for HV Model
*2: for Gasoline Model
WIRING DIAGRAM

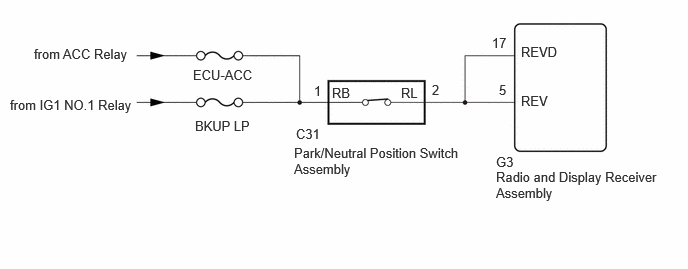

for Gasoline Model
for HV Model
CAUTION / NOTICE / HINT
NOTICE:
-
Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.
Click here
![2023 - 2025 MY RAV4 RAV4 HV [10/2022 - ]; PARK ASSIST / MONITORING: PARKING ASSIST MONITOR SYSTEM: CALIBRATION](/t3Portal/stylegraphics/info.gif)
-
for Gasoline Model
Inspect the fuses and relays for circuits related to this system before performing the following procedure.
-
for HV Model
Inspect the relays for circuits related to this system before performing the following procedure.
PROCEDURE
|
1. |
CHECK VEHICLE TYPE |
Result
Result |
Proceed to |
|---|---|
|
for Gasoline Model |
A |
|
for HV Model |
B |
| B |
|
|
|
2. |
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
(a) Remove the park/neutral position switch assembly.
for UB80E:
Click here
for UB80F:
Click here
(b) Inspect the park/neutral position switch assembly.
for UB80E:
Click here
for UB80F:
Click here
| NG |
|
REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY for UB80E:
Click here
for UB80F:
Click here
|
|
|
3. |
CHECK HARNESS AND CONNECTOR (REVERSE SIGNAL) |
|

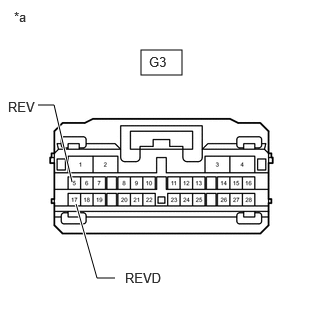

(a) Disconnect the G3 radio and display receiver assembly connector. |
|
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
G3-5 (REV) - Body ground |
Ignition switch ON Shift position in R |
11 to 14 V |
|
G3-17 (REVD) - Body ground |
Ignition switch ON Shift position in R |
11 to 14 V |
|
G3-5 (REV) - Body ground |
Ignition switch ON Shift position not in R |
Below 1 V |
|
G3-17 (REVD) - Body ground |
Ignition switch ON Shift position not in R |
Below 1 V |
|
|
|
|
