INSTALLATION

PROCEDURE

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

NOTICE:

If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

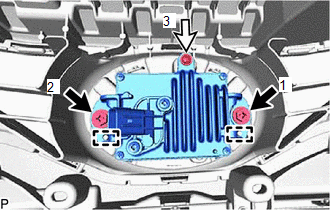

(a) Engage the 2 guides.

	Bolt
	Screw

(b) Install the millimeter wave radar sensor assembly with the 2 bolts and screw.

Torque:

Bolt :

2.5 N·m {25 kgf·cm, 22 in·lbf}

HINT:

Tighten the bolts and screw in the order shown in the illustration.

(c) Connect the connector.

2. INSTALL COOL AIR INTAKE DUCT SEAL

Click here

3. ADJUST MILLIMETER WAVE RADAR SENSOR

(a) When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.

HINT:

Millimeter wave radar sensor assembly learning can be performed by using either Target Adjustment (Triangle Target) or Target Adjustment (Flat Surface Target) or Driving Adjustment.

Target Adjustment (Triangle Target): Click here

Target Adjustment (Flat Surface Target): Click here

Driving Adjustment: Click here
