ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT MAGNETIC CLUTCH RELAY (for 2GR-FKS)
|
*a |

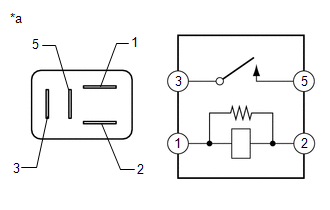

Component without harness connected (Magnetic Clutch Relay) |
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
3 - 5 |
Battery voltage applied between terminal 1 and 2 |
Below 1 Ω |
|
3 - 5 |
Battery voltage not applied between terminal 1 and 2 |
10 kΩ or higher |
|
|
