Title: BRAKE SYSTEM (OTHER): VACUUM PUMP (for 2GR-FKS): ON-VEHICLE INSPECTION; 2018 - 2024 MY Camry [06/2017 -        ]

ON-VEHICLE INSPECTION

PROCEDURE

1. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Click here 2018 - 2024 MY Camry [03/2017 -        ]; WIPER / WASHER: FRONT WIPER MOTOR: REMOVAL

2. REMOVE FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

Click here 2018 - 2020 MY Camry [06/2017 - 10/2020]; BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR: REMOVAL+ 2021 - 2024 MY Camry [10/2020 -        ]; BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR: REMOVAL+

3. OPERATION CHECK

(a) Slide the clip and disconnect the air tube from the vacuum pump assembly.

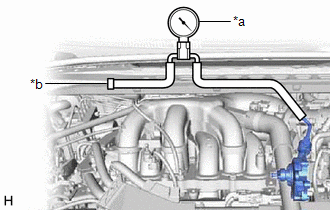

(b) Connect the hose of the vacuum gauge to the vacuum pump assembly.

*a

Vacuum Gauge

*b

Plug

(c) Start the engine and warm it up for more than 2 minutes.

(d) With the engine idling, check the vacuum of the vacuum pump assembly.

Standard Pressure:

More than 86.7 kPa (650 mmHg, 25.6 in.Hg)

HINT:

If the result is not as specified, replace the vacuum pump assembly.

(e) Remove the vacuum gauge from the vacuum pump assembly.

(f) Connect the air tube to the vacuum pump assembly, and slide the clip to secure it.

4. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

Click here 2018 - 2019 MY Camry [06/2017 - 09/2019]; BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR: INSTALLATION+ 2020 MY Camry [09/2019 - 10/2020]; BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR: INSTALLATION+ 2021 - 2024 MY Camry [10/2020 -        ]; BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR: INSTALLATION+

5. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Click here 2018 - 2024 MY Camry [03/2017 -        ]; WIPER / WASHER: FRONT WIPER MOTOR: INSTALLATION+
