Last Modified: 11-20-2023 6.11:8.1.0 Doc ID: RM1000000012SDU
Model Year Start: 2018 Model: Camry Prod Date Range: [03/2017 -           ]
Title: WIPER / WASHER: RELAY: ON-VEHICLE INSPECTION; 2018 - 2024 MY Camry [03/2017 -        ]

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT WIPER RELAY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the WIPER relay.

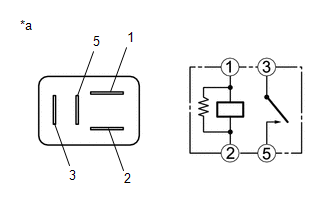

*a

Component without harness connected

(WIPER Relay)

2. INSPECT WASHER RELAY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

Battery voltage applied between terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the WASHER relay.

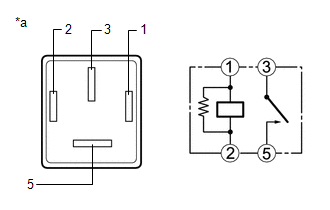

*a

Component without harness connected

(WASHER Relay)
