| Title: WIPER / WASHER: WASHER MOTOR: INSPECTION; 2018 - 2024 MY Camry [03/2017 - ] | ||
INSPECTION
PROCEDURE
1. INSPECT WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
|

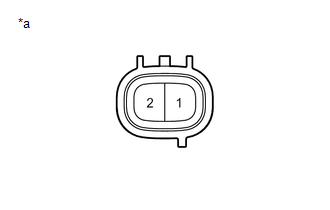

*a |
Component without harness connected (Windshield Washer Motor and Pump Assembly) |
(a) Remove the washer jar.
(b) Disconnect the windshield washer motor and pump assembly connector.
HINT:
This check should be performed with the windshield washer motor and pump assembly installed on the washer jar.
(c) Fill the washer jar with washer fluid.
(d) Connect a battery positive (+) lead to terminal 1 of the windshield washer motor and pump assembly, and a negative (-) lead to terminal 2.
(e) Check that washer fluid flows from the washer jar.
OK:
Washer fluid flows from the washer jar.
If the result is not as specified, replace the windshield washer motor and pump assembly.
|
|
