Title: BRAKE SYSTEM (OTHER): VACUUM PUMP (for A25A-FKS): ON-VEHICLE INSPECTION; 2018 - 2024 MY Camry [03/2017 -        ]

ON-VEHICLE INSPECTION

PROCEDURE

1. OPERATION CHECK

(a) Slide the clip and disconnect the union to check valve hose from the vacuum pump assembly.

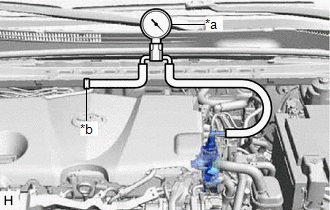

(b) Connect the hose of the vacuum gauge to the vacuum pump assembly.

*a

Vacuum Gauge

*b

Plug

(c) Start the engine and warm it up for more than 2 minutes.

(d) With the engine idling, check the vacuum of the vacuum pump assembly.

Standard Pressure:

More than 86.7 kPa (650 mmHg, 25.6 in.Hg)

If the pressure is less than the standard, disassemble and inspect the vacuum pump. If necessary, replace the vacuum pump assembly.

Click here 2018 - 2024 MY Camry [03/2017 -        ]; BRAKE SYSTEM (OTHER): VACUUM PUMP (for A25A-FKS): DISASSEMBLY

HINT:

Always perform this operation check procedure after replacing or servicing the vacuum pump assembly.

(e) Remove the vacuum gauge from the vacuum pump assembly.

(f) Connect the union to check valve hose to the vacuum pump assembly, and slide the clip to secure it.
